Systems Integration Options for Fleximate Transport Assembly Line Integration

Systems Integration

The simplicity of the Fleximate Transport Line allows your team to add fixtures, tooling, and equipment to the line and our many accessories can be utilized to further your manufacturing requirements.

If you are pressed for time on your rollout we can integrate components and tooling to meet deadlines. The following accessories were developed to provide solutions for systems integration.

Automation

Worksmart®'s Fleximate® transport line can be provided with a powered means of driving carts between assembly cells. Applications include a paced line, a long return track, or a return track in a "U" shaped cell. To meet these requirements we have developed two modular belt drive systems: The Flexi-Flow and the Friction-Flow, which are mounted between the transport line track sections and workstations. Motive power is supplied by a fractional horsepower 120v AC or 90v DC reduction gear motor with a variable speed drive.


Powered "Office Chair" Assembly cell		Close up of #50030 Flexi-Flow Drive		Close up of #50003 Friction-Flow Belt Drive

Power from the belt is transferred to the carts via a striker bar assembly fastened to the underside of the cart body. Proximity switches, photo sensors, E-stops, signal lights and other controls can be provided to meet your specifications and codes. Both systems are inherently safe as lifting one end of a cart breaks contact between the striker bar and the belt.

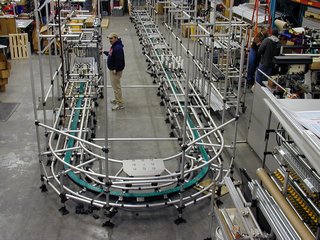

Operator Interface		Custom "U" shaped cell 18" wide track with powered return using #50030 Flexiflow drive belt. Operator is standing next to left elevator #50001.

Lock & Go

Worksmart®'s Lock & Go option performs two functions. It will retain a cart in position within plus or minus .20". A striker bar on the cart underside is held between the jaws of the Lock & Go by spring pressure. Secondly, a horizontally placed air cylinder will release and propel the cart along the line. The speed can be operator adjusted by using the flow control valve mounted on bottom of the cylinder. It is activated by foot switch or hand controls and operates between 30 + 120 PSI + CFM.


Installed #50020 Lock & Go retracted		Installed #50020 Lock & Go extended		Close up of #30010 Spring Loaded Stop

The Spring Loaded Stop #30010 features an angled Delrin block on a normally extended spring loaded pneumatic cylinder. The Striker Bar on the underside of the cart travels up the face of the block and lodges in a cut out detent in the block. To release the cart, the pneumatic cylinder is retracted.
